Rx120-3i 16 Edge Server Series

Rx120-3i 16 Edge Server Series

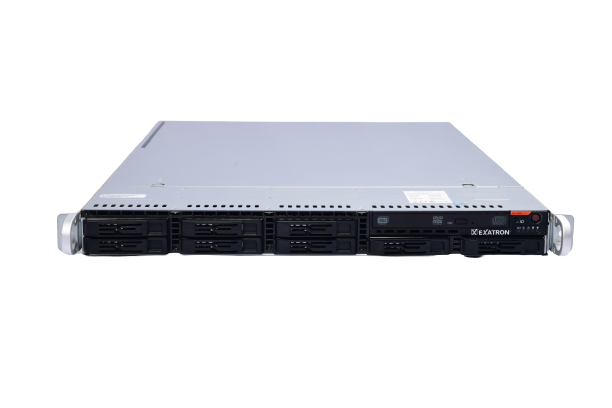

Gallery Image
Rx120-3i 16 Edge Server Series
Key Applications
Ideal for

Edge Computing Deployments, Virtualization and Cloud Applications, Enterprise IT Workloads

Key Features
Rx120-3i 16 Edge Server

Built-in Security, Compact Design, Energy Efficiency, Seamless Management, Rest easier with Exatron Services

Product SKUs
SuperServer Rx120-3i16-10SN, Rx120-3i16-10N
Motherboard
Intel®C621A Platform Controller Hub
Processor
Processor 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake), Supports CPU TDP up to 270W **Use over 165W CPU, please contact Exatron Technical Support for more info/details about optimized CPUs and specialized system. CPU Interconnection: QPI Speeds 11.2 GT/s, Socket Type: Socket P+ (LGA-4189)
System Memory
System Memory 8 x memory channels per CPU (1DPC), 16 x DIMM slots support: DDR4 3200/2933MHz RDIMM/LRDIMM, up to 512GB RDIMM SRx4 (16Gb), up to 1024GB RDIMM DRx4 (16Gb), up to 4096GB RDIMM 3DS 8Rx4 (16Gb), up to 2048GB LRDIMM QRx4 (16Gb), up to 4096GB LRDIMM 3DS 8Rx4 (16Gb), Intel® Optane™ DC Persistent Memory (Barlow Pass) support
Input / Output
Integrated IO 1x RIO RJ45 1G MGMT 1x Int DH10 serial port 1x RIO VGA DB-15
System BIOS
BIOS BIOS Type : AMI UEFI BIOS SPI (Serial Peripheral Interface) FLASH Interface • SMBIOS BIOS Features : • Serial console redirection • ACPI • BIOS Boot • PXE • BIOS Recovery Mode • WOL • SRIOV • AC loss recovery • iSCSI • BIOS recovery • TPM • IPMI 2.0 KCS interface • PCIe NTB
Management
Embedded Management IPMI 2.0, KVM over IP, Media redirection, Temperature, fan, voltage, PSU sensor monitor, System temperature, System ID / System fail indicator, Remote power on/off/reset, SEL message alarm through mail, SNMP support, Intel NM
PC Health Monitoring
Operating conditions •Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF) •Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF) •Storage operating humidity : 5%~95% non-condensing
Dimensions and Weight
Dimensions (WxDxH) mm: 438 x 678.7 x 44.4, inches: 17.2 x 26.7 x 1.7
Expansion Slots
PCIe slots CPU0: 2 x PCIe Gen4 x16 slots (HHHL; one with FH I/O bracket) + 1 x OCP V3.0
Drive Bays / Storage
Storage External: 1U 10x2.5” hot swap (PCIe 5.0 U.2 NVMe), SAS /SATA/NVMe x 2.5” hot swap (5x PCIe Gen4 Slimline connectors) Internal: 2 x M.2/M-Key/22110/2280 (PCIe Gen3)
System Cooling
Cooling Options Air Cooled
Fans 6 x 40x56mm easy swap fans, 1 x 40x28mm fan
Power Supply
Power Supply 750W/1100W 1+1 Redundant power supply 80+ Platinum
Operating Environment
Operating Systems Microsoft Windows Server 2019/2022, Redhat Linux 9.2,8.8.8.7, ubuntu 20.04LTS,22.04LTS
Others
Rack Height (Processor count) 1U (2S)
USB ports 2x RIO USB 3.0 2x FIO USB3.0
Hard Drives 10 / 8x Front Bay 2.5" hot plug SAS/SATA
RAID Controller On Board RAID SATA RAID,0,1,5, Optional, yes
Integrated LAN IPMI Yes, 1x Management port
Fans 40mm | 6 fans
USB ports 2x RIO USB 3.0 2x FIO USB3.0
Certification CE, WEEE, ROHS,BIS, EPR
Drive Bays 10 bay 2.5” hot swap (5x PCIe Gen4 Slimline connectors)
Embedded NIC 1 x GbE RJ45 dedicated BMC management
Network options 1x X16 OCP/3xPCIe
Regulation and compliance BIS, WEEE, ECC, ISO9001 Complied
