Rx120-4i32-12SN

Rx120-4i32-12SN

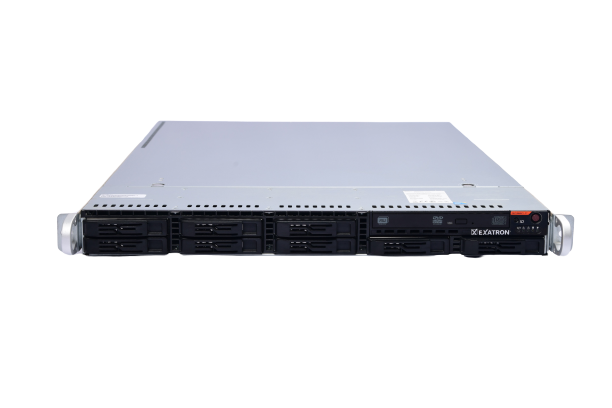

Gallery Image
Rx120-4i32-12SN
Key Applications
Ideal for

Mixed Workload Standardization, Database and Analytics, Virtual Desktop Infrastructure

Key Features
Rx120-4i32

Enhanced Versatility, Cyber-Resilient Architecture, Embedded Management, Rest easier with Exatron Services

Product SKUs
SuperServer Rx120-4i32-12SN
Motherboard
Intel®C741A Platform Controller Hub
Processor
Processor o 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids) o 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids) o Supports CPU TDP up to 350W o Intel®Xeon® Silver 4300 processor Note: Please contact Exatron Technical Support for more info/details about optimized CPUs and specialized system. Socket Type : Socket E (LGA 4677)
System Memory
System Memory • DDR5 4800MHz (1DPC) • DDR5 5600MHz (1DPC) 4400MTS (2DPC) by Emerald Rapids CPU • Total 32 memory slots; 16 slots per CPU (2DPC)
System BIOS
BIOS BIOS Type: AMI UEFI BIOS BIOS Features: •ACPI •PXE •WOL •AC loss recovery •BIOS recovery •IPMI 2.0 KCS mode interface •SRIOV •SMBIOS •TPM •Serial console redirection •PCIe hotplug
Management
Embedded Management Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • HTML5 • Redfish • SMASH Support Network Controllers : Realtek RTL8211E for BMC dedicated management port Graphics : Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor • PCIe Graphic/2D Controller • 1920x1200@60Hz 32bpp
Security
Security and Management Features • Intel® Virtualization Technology for Directed I/O (VT-d) • Intel® Trusted Execution Technology TPM2.0 • OCP Network Support • RAID Mezzanine Slot Support • Remote Management (Intel RMM Lite4) • IPMI 2.0 & Redfish, KVM Remote media Support
PC Health Monitoring
Operating conditions •Storage temperature: -10ºC(14ºF) ~ 60ºC(140ºF) •Operating temperature: 0ºC(32ºF) ~ 35ºC(95ºF) •Storage operating humidity: 5%~95% non-condensing
Dimensions and Weight
Dimensions (WxDxH) mm : 438 x 800 x 43.75 inches : 17.2 x 33.5 x 1.75
Expansion Slots
PCIe slots •2 x PCIe X16 slots (FHHL) •2 x OCP 3.0 bays (PCIe X16 width)
Drive Bays / Storage
Storage External: Up to 12 x 2.5" hot swap (PCIe 5.0 U.2 NVMe), Internal: 2 x M.2/M-Key/22110/2280 (PCIe Gen4)
System Cooling
Cooling Options Air Cooled
Fans 8 x 40x56mm easy swap fans ABS material plastic air-duct (clear)
Power Supply
Power Supply 1200W /1600W/2000W CRP N+1 Supports
Operating Environment
OS Latest Microsoft Windows Server, Red Hat Enterprise Linux, Ubuntu Enterprise Server, CentOS
Others
Regulation and compliance BIS, WEEE, ECC, ISO9001 Complied
Certifications CE, WEEE, ROHS, BIS, EPR
Drive Bays •12 bay 2.5"/2.5" 8-bay SAS/SATA, and 4 NVMe PCIe Gen 5 •2 x 2.5" hot swap (SATA, 15mm, rear)
GPU Options •Reserve GPU card support retention of Specific mechanical bracket(FHHL), only SFF GPUS *Please contact Exatron Technical Support for more info/details
Embedded NIC 1 x GbE RJ45 dedicated BMC management
Network options 2x X16 OCP/3xPCIe
Data Sheets

Rx120-4i32

View Download
Drivers

Drivers NoFound.

Certificates

Certificates NoFound.

product manual

product manual NoFound.

Optional Parts List
Part Number Qty Description
No optional parts available
