Rx220-2i24 2U

Rx220-2i24 2U
Gallery Image
Gallery Image
Rx220-2i24 2U
Key Applications
Ideal for

virtualization, cloud computing, big data processing, high-performance computing, distributed storage, enterprise markets, or telecommunications business applications, and more

Key Features
Rx220-2i24 2U Rackmount Server

Supports 1 or 2 4th/5th generation Intel® Xeon® Scalable processors, with a maximum TDP of 350W

Product SKUs
SuperServer Exatron Rx220-2i24
Motherboard
Intel C621 Chipset
Processor
Processor Supports 1 or 2 2nd generation Intel® Xeon® Scalable processors, with a maximum TDP of 250W
System Memory
Memory24 DDR4 memory slots Supports DDR4 ECC RDIMM/LRDIMM, and memory frequency supports 1866/2133/2400/2666/2933 MHz Up to 12* DDR4 Channels, per channel supports 2* DIMM, 24* DDR4 slots, up to 12* Optane PMem 100 series, up to 2666MHz
Input / Output

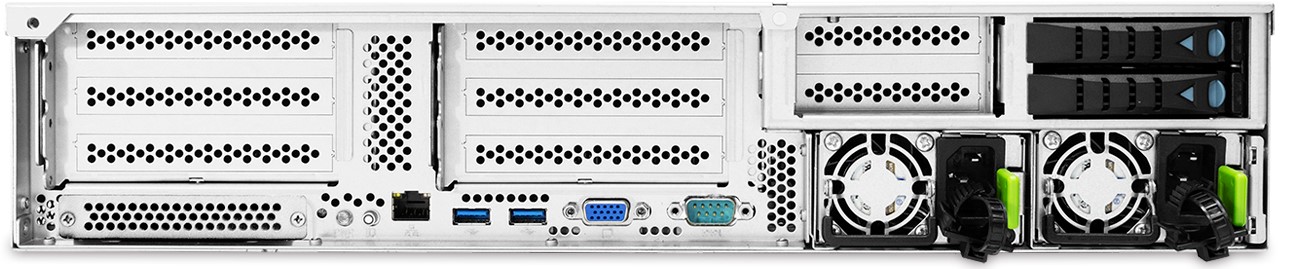

Front: 1* VGA and 2* USB3.0 Rear: 1 VGA, 2 USB3.0, 1 management network port, 2 RJ45 network ports 1 OCP 3.0 (PCIe x 8)
Management
Management 1 dedicated RJ45 management port
Security
Security Optional TPM module
PC Health Monitoring
BMC
Chassis
2U 3.5"/2.5" 12Bay SAS /SATA 2U Rack Server
Dimensions and Weight
Dimensions (WxDxH) 799*433.4*87.6mm(D*W*H)
Front Panel
Up to 12* 3.5″ /2.5″ SAS/ SATA3.0 hard disks
Expansion Slots
PCIe slots Riser1：3* full-height PCIe 3.0 x8 or 1* full-height PCIe 3.0 x16、1*full-height PCIe 3.0 x8 Riser2：3*full-height PCIe 3.0 x8 or 1*full-height PCIe 3.0 x16、1*full-height PCIe 3.0 x8 Riser3：1*half-height PCIe 3.0 x8、1*half-height PCIe 3.0 x8(in x16 Slot) or 1*half-height PCIe 3.0 x16 Riser4：1*half-height PCIe 3.0 x8、1*half-height PCIe 3.0 x8(in x16 Slot) or 1*half-height PCIe 3.0 x16 OCP：1*OCP 3.0(PCIe 3.0 x8)
Drive Bays / Storage
Storage InterfaceInternal: PCH supports RAID 0\1\10&5 External HBA (non-RAID) : 12 Gbps SAS HBA 3 Mini SAS HD interfaces, 2 SATA/NVMe M.2 SSD interfaces, and 14 MCIO interfaces
System Cooling
Fan Standard 4 hot-swappable N+1 redundant fans, supporting 8038/8056 specifications
Power Supply
Power Supply Supports AC 220V 800W, 1300W, 1600W, 2000W, 2200W, 2600W redundant power supplies (adapted to actual power requirements)
Operating Environment
Working Temperature& Humidity Temperature 5℃~35℃/humidity 20%~80% RH non-condensing
Data Sheets

Rx220-2i24 2U

View Download
Drivers

Drivers NoFound.

Certificates

Certificates NoFound.

product manual

product manual NoFound.

Optional Parts List
Part Number Qty Description
No optional parts available
