Exatron

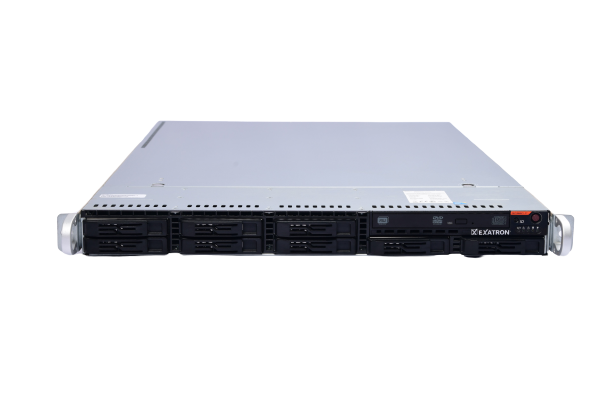

Rx120-4i 16 Edge Server Series

Ideal for

Edge Computing Deployments, Virtualization and Cloud Applications, Enterprise IT Workloads

Built-in Security, Compact Design, Energy Efficiency, Seamless Management, Rest easier with Exatron Services

Product SKUs
SuperServer Rx120-4i16-10SN, Rx120-4i16-10N
Motherboard
Intel®C741A Platform Controller Hub
Processor
Processor	2x 4410Y 4th Generation Intel® Xeon Scalable Processors Series, CPU Interconnection: QPI Speeds 11.2 GT/s, Socket Type: 1 x LGA 4677 (Socket E)
System Memory
System Memory	64GB DDR5 5600/4800MHz RDIMM (1DPC), Total 16 memory slots; 8 slots per CPU (1DPC)
Input / Output
Rear I/O	LAN: 1 x GbE RJ45, 1 x GbE RJ45 dedicated to BMC management, 2 x USB 3.0 Type A, Video Output: 1 x external DB-15 VGA port, 1 x external COM port phone jack
Front I/O	•Power Button, Reset button, UID, 2 x USB 3.2 Gen1, Power status, Drive activity, LAN activity, System alert, System ID
System BIOS
BIOS	BIOS Type: AMI UEFI BIOS SPI (Serial Peripheral Interface) FLASH Interface BIOS Features : • ACPI • PXE • WOL • AC loss recovery • BIOS recovery • IPMI 2.0 KCS interface • SMBIOS • Serial console redirection • BIOS Boot • BIOS Recovery Mode • SRIOV • iSCSI • TPM • PCIe NTB
Management
Embedded Management	IPMI 2.0 - KVM over IP, Media redirection, Temperature, fan, voltage, and PSU sensor monitor, System temperature, System ID / System fail indicator, Remote power on/off/reset, SEL message alarm through email, SNMP support, Intel NM
PC Health Monitoring
Operating conditions	•Storage temperature: -10ºC(14ºF) ~ 60ºC(140ºF) •Operating temperature: 0ºC(32ºF) ~ 35ºC(95ºF) •Storage operating humidit : 5%~95% non-condensing

Dimensions and Weight
Dimensions (WxDxH)	mm: 438 x 678.7 x 44.4, inches: 17.2 x 26.7 x 1.7
Expansion Slots
PCIe slots	2 x FHHL PCIe Gen5 x16 slots
Drive Bays / Storage
Storage	4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays (Optional), 8 x 2.5" SATA/SAS hot-swappable bays, *A SAS card is required for SAS device support, 1 x M.2 slot (M-key, PCIe Gen3 x4, supports 2280/22110 cards)
System Cooling
Cooling Options	Air Cooled
Fans	6 x 40x56mm easy swap fans, 1 x 40x28mm fan
Power Supply
Power Supply	750W/1100W /1300/1600Watts 1+1 Redundant power supply 80+ Platinum
Operating Environment
OS	Windows Server 2019 / 2022 RHEL 8.6 / 8.7 / 8.8 / 8.9 /8.10 / 9.0 / 9.1 / 9.2 / 9.3 / 9.4 SLES 15 SP4 / SP5 / SP6 Ubuntu 22.04 / 22.04.1 / 22.04.2 / 22.04.3 / 22.04.4 / 24.04 LTS VMware ESXi 7.0 Update 3o / 8.0 Update 1, Update 2, Update 3 Citrix Hypervisor 8.2 LTSR CU1
Others
Drive Bays	10 bay 2.5” hot swap (5x PCIe Gen4 Slimline connectors)
Embedded NIC	1 x GbE RJ45 dedicated BMC management
Network options	2x1G Ethernet port
Regulation and compliance	BIS, WEEE, ECC, ISO9001 Compliant
Certifications	CE, WEEE, ROHS, BIS, EPR
