| Form factor | MicroATX |
| Processor | 12th/13th/14th Gen Intel Core™ i9/ i7/ i5/ i3 processors Intel Pentium/Celeron™ processors for LGA1700 |
| Chipset | Intel® Q670 |
| Memory | Upto 256GB | DDR5 |Support for 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules| 4 Slots |
| Hard Drives | 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 5 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| PCIe slots | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
|
Power Supply* *Configurable. scaled to 125% TDP |
ATX,MicroATX |
| Fans | Integrated *optional additional 80mm fans available |

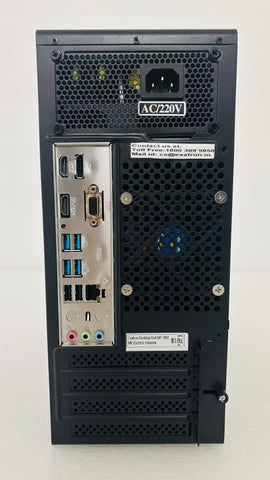

| Integrated IO | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x Display Ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 3 x audio jacks |
| Supported Operating Systems | Windows 10 (64bit) / 11(64bit), Ubuntu |
