Exatron

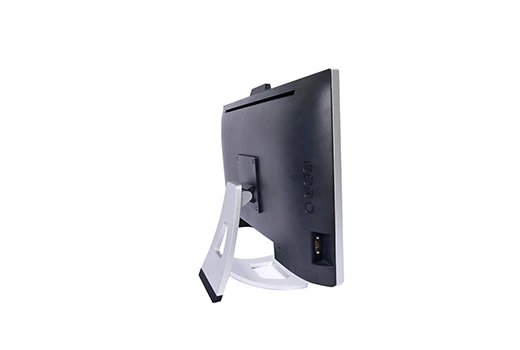

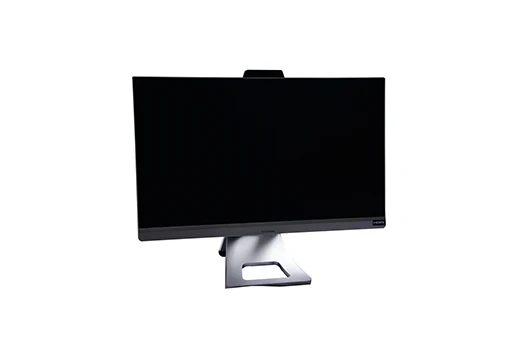

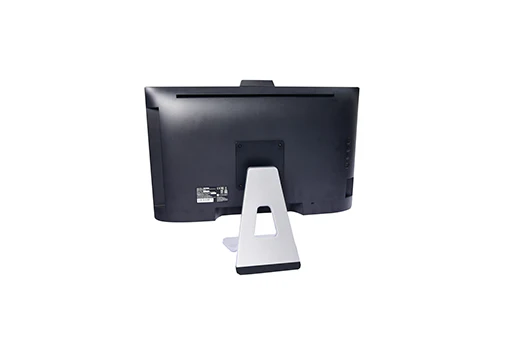

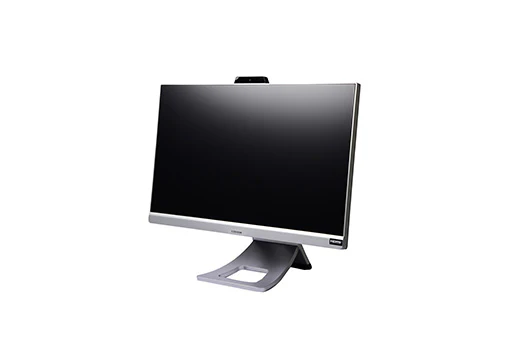

AiO E24-EB560n

Ideal for

Demanding business applications, leveraging the latest Intel processor technology and the speed of DDR5 memory

provides a stable, secure, and high-performance foundation

Product SKUs
SuperServer AiO E24-EB560n
Motherboard
Intel® Q670
Processor
Processor	Support 12Gen/13Gen/14Gen Intel core I9, I7, I5, I3 Pentium, Celeron Processor in 1700Pin (Support up to 65W)
System Memory
Memory	2 x DDR5 SO-DIMM sockets supporting up to 64GB of system memory, Support for DDR5 4800 MHz memory modules

Expansion Slots
Expansion Slots	1 x M.2 Socket 1 with E key Type 2230 connector for the wireless communication module (M2_WIFI), 1 x M.2 Socket 3 with M key Type 2242/2260/2280 connector for SATA SSD OR PCIE SSD (IC control)
Drive Bays / Storage
Storage Interface	2 x SATA 6Gb/s connector
System Cooling
Fans	"Integrated *optional additional 80mm fans available"
Power Supply
Power Supply	"120 Watts/150Watts Note :- For I5/i7/i9 - K Series processors 150Watts is mandatory "
Operating Environment
Supported Operating Systems	Windows 10 (64bit) / 11(64bit), Ubuntu
Others
Audio	Realtek® ALC897 codec;6 Channel HD Audio (Colay ALC662, Default ALC897)
LAN	1xRealtek 8111H Support 100/1000Mbps 1xIntel i219-LM Support 100/1000Mbps
USB	3 x USB 3.2 Gen2 ports on back Panel Connectors 1 x Type-c ports on back Panel Connectors 1 x USB3.0 ports on Front panel header Connectors

Data Sheets

AIO E24-EB560n

Drivers

Drivers NoFound.

View

Optional Parts List
	Part Number	Qty	Description
No optional parts available
