Dx510P
Key Applications
Ideal for
Content creation to Gaming
Key Features
Dx510P
Provide a stable, secure, and high-performance foundation for demanding business applications, leveraging the latest Intel processor technology and the speed of DDR5 memory.
| Product SKUs | |
|---|---|
| SuperServer Dx510P | |
| Motherboard | |
| Intel® Q670 Express Chipset | |
| Processor | |
| Processor | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™ Pentium® Gold and Celeron® Processors, L3 cache varies with CPU |
| System Memory | |
| Memory | •4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory •Dual channel memory architecture •Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules •Support for Extreme Memory Profile (XMP) memory modules |
| On-Board Devices | |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Input / Output | |

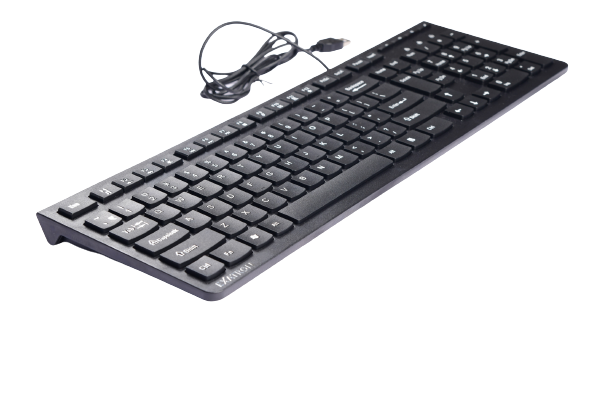

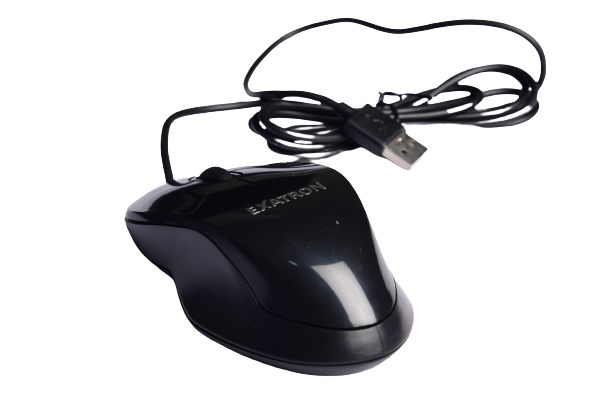

| INPUT DEVICES | USB Wired Keyboard & USB Wired Optical Mouse |
| Chassis | |
|---|---|
| Form Factor | Micro ATX |
| Dimensions and Weight | |
| Dimensions (W x L) | 24.4cm x 24.4cm |
| Expansion Slots | |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Drive Bays / Storage | |
| Storage Interface | CPU : 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset : 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 5 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Power Supply | |
| POWER SUPPLY | 400W Internal SMPS with 0.9 Power factor |
| Operating Environment | |
| OS | Supports Windows 10(64bit) / Windows 11(64bit) |
| Others | |
| LAN | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Intel® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) (LAN2) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| USB | 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
