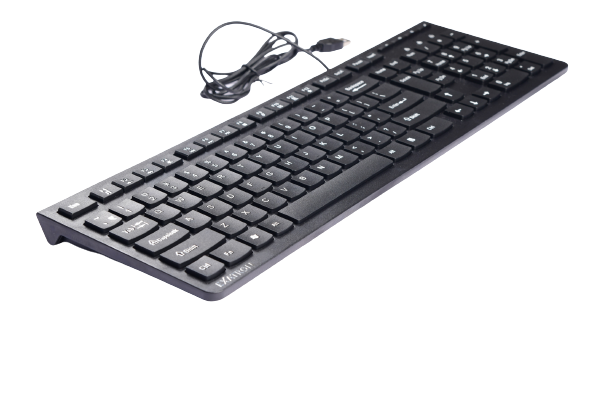

Gallery Image
Dx505AP
Key Applications
Ideal for

exceptional clarity and high fidelity sound,

Key Features
Dx505AP

Provide a stable, secure, and high-performance foundation for demanding business applications, leveraging the latest AMD processor technology and the speed of DDR4 memory.

Product SKUs
SuperServer MO-0066
Motherboard
AMD B550
Processor
Processor •Socket AM4 support AMD Ryzen 3rd Gen (Matisse/ Renoir) and Ryzen 4th Gen • (Vermeer/ Future) processors • Support for future AMD Ryzen processors with BIOS update
System Memory
Memory •4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs): • Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 •3rd Gen AMD Ryzen Processors (Matisse CPUs): •Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 •3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): •Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ •3200/ 2933/ 2667/ 2400/ 2133 •4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory •Each DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module
Input / Output
INTERNAL I/O • 4 x SATA III (6.0Gb/s) Connectors • 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module • 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) • 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) • 1 x 8-Pin Power Connector • 1 x 24-Pin Power Connector • 1 x CPU Fan Connector • 2 x System Fan Connectors • 1 x Front Panel Header • 1 x Front Audio Header • 1 x Speaker Header • 1 x Clear CMOS Header • 1 x S/PDIF out Connector • 1 x COM Port Header • 1 x TPM Header • 1 x SYSTEM Status LED •* M.2 (E key) Wi-Fi card is not provided
Chassis
Form Factor Micro ATX
Dimensions and Weight
Dimensions (W x L) 23.5*22.5cm
Expansion Slots
Expansion Slots •AMD Ryzen 5000/3000 Series Processors •1 x PCIe 4.0 x16 Slot (x16 or x4/x4/x4/x4 mode)
Drive Bays / Storage
Storage Interface •Total supports 2 x M.2 socket and 4 x SATA III (6Gb/s) ports • 1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA): •Supports M.2 Type 2242/ 2260/ 2280 SSD module •AMD Ryzen 5000/3000 Series Processors •Supports PCIe 4.0 x 4 (64Gb/s) & SATA III (6.0Gb/s) SSD •AMD Ryzen 5000 G/4000 G Series Processors •Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD •AMD B550 Chipset •1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA): •Supports M.2 Type 2242/ 2260/ 2280 SSD module •Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6.0Gb/s) SSD •4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10•
Power Supply
POWER SUPPLY 400W Internal SMPS with 0.9 Power factor
Operating Environment
OS Supports Windows Windows 10(64bit) / Windows 11(64bit)
Others
INTEGRATED VIDEO •By CPU model •Supports DX12 •Supports HDCP
LAN •Realtek RTL8111H •10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Audio •ALC897 •7.1 Channels, High Definition Audio, Hi-Fi (Front)
USB •6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal headers) •6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
Data Sheets

Dx505AP

View Download
Drivers

Drivers NoFound.

Certificates

Certificates NoFound.

product manual

product manual NoFound.

Optional Parts List
Part Number Qty Description
No optional parts available
