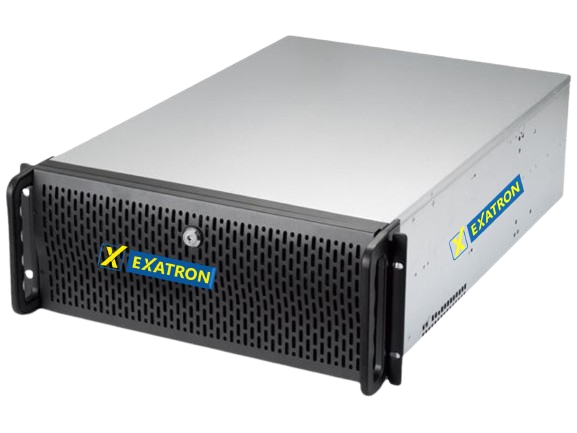

Rx420-A332-8GP

Rx420-A332-8GP
Rx420-A332-8GP
Key Applications
Key Features
Product SKUs
SuperServer Rx420-AM4
Motherboard
AMD Turin SOC
Processor
Processor Supports 1 or 2 AMD EPYC Turin processors, compatible with AMD EPYC Genoa Processors
System Memory
Memory 24 DDR5 memory slots, compatible with DDR5 4800/6400MHz memory
On-Board Devices
Rare IO VGA, 2 USB 3.0, 1 Management Port, 2 RJ45 Ports, 1 Serial Port
Input / Output
I/O ports Supports 12 hot-swappable 3.5″/2.5″ SAS/SATA/NVMe drives I/O Ports Front: 2 USB 3.0, 1 Power Button, 1 Reset Button, 1 Hard Drive Indicator, 1 System Fault Indicator, 2 Network Indicators Rear: 1 VGA, 2 USB 3.0, 1 Management Port, 2 RJ45 Ports, 1 Serial Port
System BIOS
BIOS Type AMI UEFI BIOS
Management
BMC/MGMT 1G RJ45 Pport
Security
TPM/BIOS /Intrusion Supports TPM 2.0 module, chassis intrusion alarm, BMC/BIOS redundancy
PC Health Monitoring
Yes Through BMC
Chassis
4U/5U 12Bay-SAS/SATA/NVMe
Dimensions and Weight
Gross Weight (W/PSU& Rail) 51.85 KGs
Packaging Dimensions (W x D x H) 625 x 1130 x 430 mm/ inches 24.6 x 44.5 x 17
Front Panel
Oprations 2 USB 3.0, 1 Power Button, 1 Reset Button, 1 Hard Drive Indicator, 1 System Fault Indicator, 2 Network Indicators
Expansion Slots
PCIe Expansion 20 PCIe 5.0 MCIO (x8) Supports expansion of 8x PCIe 5.0 x16 dual-width, full-height, full-length slots and 5x PCIe 5.0 x16 single-width, full-height, full-length slots
Drive Bays / Storage
Storage 12 SAS/SATA Drive Bays/M.2 on Board for OS
Storage Controller 2 PCIe3.0 M.2(2280/22110）
System Cooling
Internal Fans 10 x 8056mm hot swap fans
Power Supply
Power Supply Supports 1600w/2000w/2200w/2600w CRPS N+1 redundant power supply (config- ured based on actual power)
Operating Environment
Working Temperature Operating temperature: 5ºC - 35ºC (without direct sunlight); Storage temperature: - 40ºC - 70ºC
Others
Operating System Microsoft Windows Server, RedHat Enterprise Linux, SUSE Linux Enterprise Server, Centos, Ubuntu, VMware ESXi
