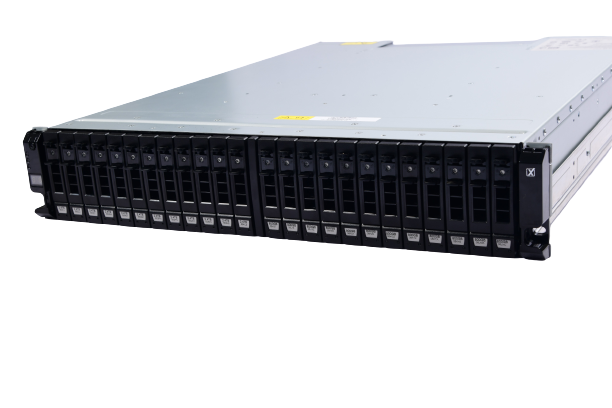

Exatron

Rx220-4i

Ideal for

•Mixed Workload Standardization •Database and Analytics •Virtual Desktop Infrastructure

Enhanced Versatility, Cyber-Resilient Architecture, Embedded Management, Rest easier with Exatron Services

Product SKUs
SuperServer Rx220-4i32-12SN
Processor
Processor	•5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids) •4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids) •Supports CPU TDP up to 350W
System Memory
System Memory	•DDR5 4800MHz (1DPC) •DDR5 5600MHz (1DPC) 4400MTS (2DPC) by Emerald Rapids CPU •Total 32 memory slots; 16 slots per CPU (2DPC)
System BIOS
BIOS	BIOS Type: AMI UEFI BIOS, BIOS Features: •ACPI •PXE •WOL •AC loss recovery •BIOS recovery •IPMI 2.0 KCS mode interface •SRIOV •SMBIOS •TPM •Serial console redirection •PCIe hotplug
Management
Embedded Management	Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • HTML5 • Redfish • SMASH Support Network Controllers: Realtek RTL8211E for BMC dedicated management port Graphics: A speed AST2600 Advanced PCIe Graphics & Remote Management Processor •PCIe Graphic/2D Controller •1920x1200@60Hz 32bpp
PC Health Monitoring
Operating conditions	•Storage temperature: -10ºC(14ºF) ~ 60ºC(140ºF) •Operating temperature: 0ºC(32ºF) ~ 35ºC(95ºF) •Storage operating humidity: 5%~95% non-condensing

Chassis
Chassis Form Factor	2U Rack Server
Dimensions and Weight
Dimensions (WxDxH)	•mm: 438 x 800 x 87.5 •inches: 17.2 x 33.5 x 3.5
Front Panel
No of Front Drives Supported	4LFF /8SFF
Front Drive Form Factor	Hot-swap 2.5" & 3.5”
Expansion Slots
PCIe	Riser1/2：1Full height PCIe 5.0 x16、2 Full height PCIe 5.0 x8, 2* Full height PCIe 5.0 x16 OCP：2*OCP 3.0(PCIe 5.0 x8)
Drive Bays / Storage
Storage	External: •Up to 24 x 2.5" hot swap (PCIe 5.0 U.2 NVMe) •2 x 2.5" hot swap (SATA, 15mm, rear) Internal: •2 x M.2/M-Key/22110/2280 (PCIe Gen4)
Drive Bays	•12 bay 3.5"/2.5" 8-bay SAS/SATA, and 4 NVMe PCIe Gen 5 •2 x 2.5" hot swap (SATA, 15mm, rear)
System Cooling
Cooling Options	Air Cooled
Fans	6 x 60x56mm easy swap fans ABS material plastic air-duct (clear)
Power Supply
Power Supply	1200W /1600W/2000W CRP N+1 Supports
Operating Environment
Operating Systems	Latest Microsoft Windows Server, Red Hat Enterprise Linux, Ubuntu, Enterprise Server, CentOS
Others
GPU Options	Reserve GPU card support retention of Specific mechanical bracket (FHHL)
Embedded NIC	1 x GbE RJ45 dedicated BMC management
Network options	2x X16 OCP/3xPCIe
Regulation and compliance	BIS, WEEE, ECC, ISO9001 Complied
Certifications	CE, WEEE, ROHS, BIS, EPR
