Exatron

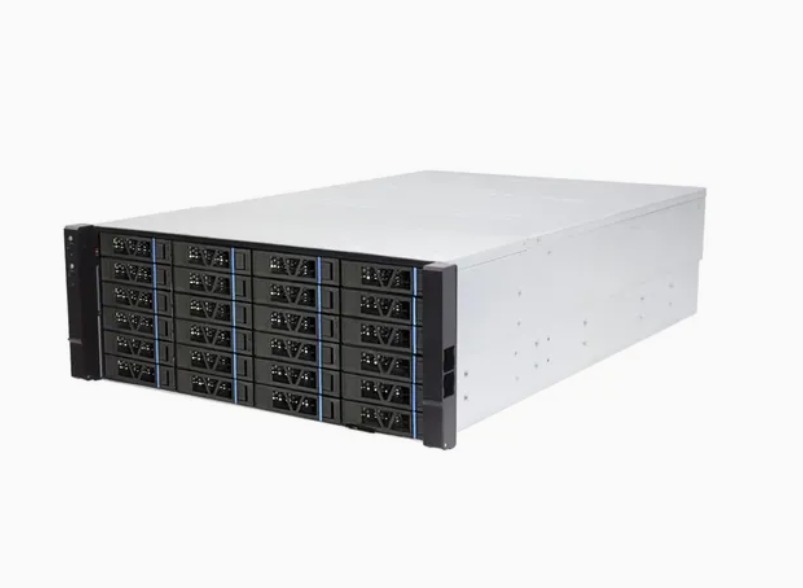

XSAN Storage (4U -24 Diskbay)

Ideal for

cloud architecture, powerful new-generation, hardware platform and rich intelligent management software

Dual storage controller technology, Active-Active dual-active technology, Cache mirroring technology

Product SKUs
SuperServer XSAN Storage (4U -24 Diskbay)
Motherboard
Controller
Processor
Intel	Intel® Xeon® 64-bit 4-core
System Memory
Memory	32GB（8GB cache），Optional up to 512GB
Memory Protection	Cache-to-Flash (Supercapacitor Module + Flash Module) (option)
On-Board Devices
Management	1 (onboard management port per controller)
Network	10 GbE SFP+ LAN Port(4 iSCSI (onboard per controller) / 4 iSCSI (option))
	10 GbE RJ45 LAN Port 2 iSCSI (option)
	25 GbE SFP28 LAN Port 2 iSCSI (option)
	16 Gb SFP+ Fibre Channel 2 (option) / 4 (option)
	32 Gb SFP28 Fibre Channel 2 (option)
Input / Output
MGMT	Others Console Port x 1, Service Port (UPS) x 1
Management
Management	Web UI / Serial console / RESTful API / S.E.S. / LCM
PC Health Monitoring
WEB GUI	Through MGMT

Chassis
SCU Form factor	4U，24 Bays
Dimensions and Weight
Size(W×H×D)	170.3 x 438 x 515
Net Weight (kg)	25.9
Gross Weight (kg)	28.3

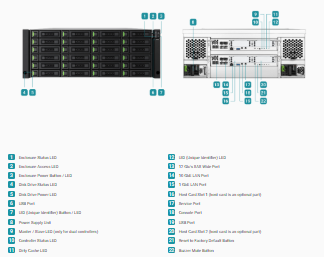

Front Panel
	3.5” Slot x 24
Expansion Slots
1 x x16, 2xx8	PCIe Expansion (Gen3x8 Slot) x 2
Drive Bays / Storage
Storage OS	Exatron XSAN
System Cooling
System Fan	4 pcs
Power Supply
Power Input	AC 100V~127V/200V~240V; 60Hz/50Hz
Power module	850 W x 2 (80 PLUS Platinum)
Power Consumption	648 W
Operating Environment
Ambient Temperature	10–35°C (50–95°F) while operating; -40 - 55°C(-40 - 135°F) while in storage, according to the surroundings.
Others
RAID Type	0 / 1 / 5 / 6 / 10 / 50 / 60 / 5EE / 6EE / 50EE / 60EE / N-way mirror
Storage Efficiency	Thin provisioning
Software Acceleration	SSD cache (option) / Auto tiering (option)
Data Protection	Snapshot / Local volume clone
Remote Replication	Asynchronous (built-in) / Synchronous (option)
Security	HTTPS / SSH / iSCSI CHAP / ISE & SED

Data Sheets

Xsan

Drivers

Drivers NoFound.

View

Optional Parts List
	Part Number	Qty	Description
No optional parts available
