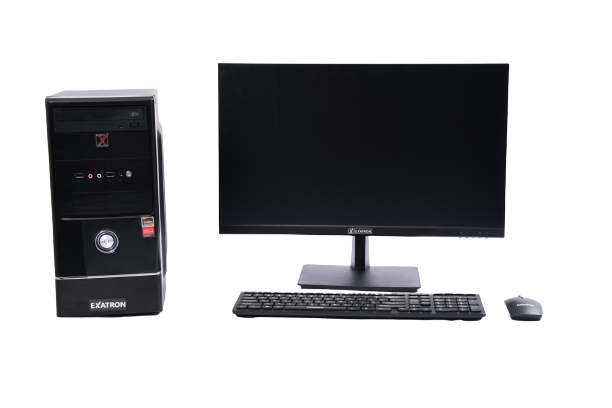

Gallery Image

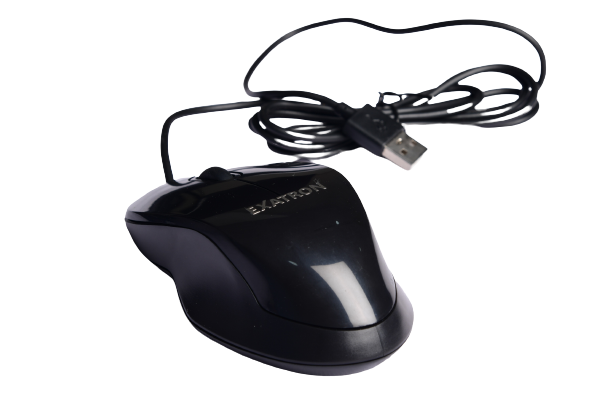

Gallery Image

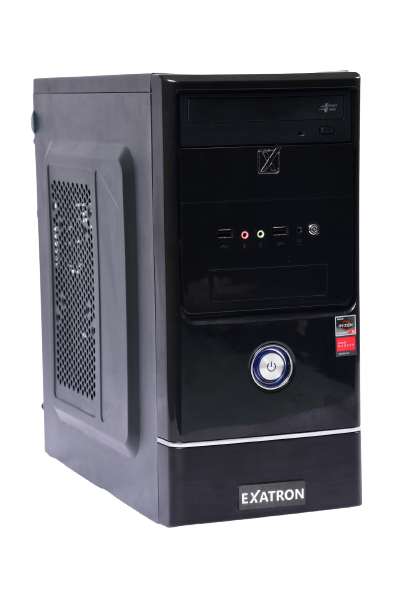

Gallery Image

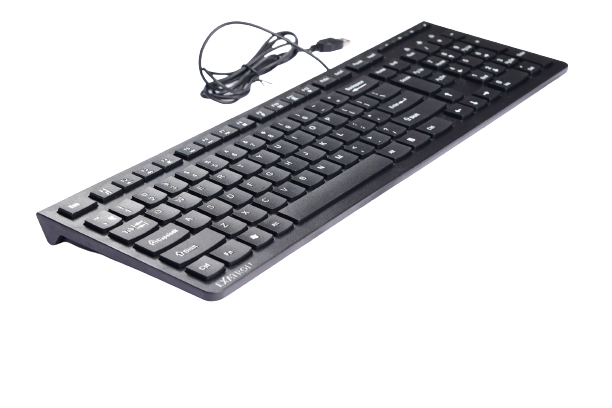

Gallery Image
Dx605AT
Key Applications
Ideal for

Best performance, stability and compatibility.

Key Features
Dx605AT

Provide a stable, secure, and high-performance foundation for demanding business applications, leveraging the latest AMD processor technology and the speed of DDR5 memory.

Product SKUs
SuperServer Dx605AT
Motherboard
AMD B650 Chipset
Processor
Processor •Socket AM5 •Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
System Memory
Memory •4x DDR5, Maximum Memory Capacity 256GB •Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz •Max. overclocking frequency: •1DPC 1R Max speed up to 7200+ MHz •1DPC 2R Max speed up to 6000+ MHz •2DPC 1R Max speed up to 6000+ MHz •2DPC 2R Max speed up to 5400+ MHz •Supports Dual-Channel mode •Supports non-ECC, un-buffered memory •Supports AMD EXPO
On-Board Devices
Onboard Graphics •1x HDMI™ •Support HDMITM 2.1, maximum resolution of 4K 60Hz* • 1x DisplayPort • Supports DP 1.4, maximum resolution of 4K 60Hz* • 1x VGA Support VGA, maximum resolution of 1920x1200 60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Dimensions and Weight
Dimensions (W x L) 243.84mm x 243.84mm
Expansion Slots
Expansion Slots •1x PCI-E x16 slot •Supports x16 (For Ryzen™ 9000/ 7000 Series processors) •Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) •Supports x4 (For Ryzen™ 8500/ 8300 Series processors) •2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Drive Bays / Storage
Storage Interface •2x M.2 •M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices •4x SATA 6
Operating Environment
OS Support for Windows® 11 64-bit, Windows® 10 64-bit
Others
LAN Realtek® 8125BG 2.5G LAN
Audio •Realtek® ALC897 Codec •7.1-Channel High Definition Audio
USB •4x USB 2.0 (Rear) •4x USB 2.0 (Front) •2x USB 5Gbps Type A (Rear) •2x USB 5Gbps Type A (Front) •2x USB 10Gbps Type A (Rear) •1x USB 10Gbps Type C (Front)
Data Sheets

Dx605AT

View Download
Drivers

Drivers NoFound.

Certificates

Certificates NoFound.

product manual

product manual NoFound.

Optional Parts List
Part Number Qty Description
No optional parts available
