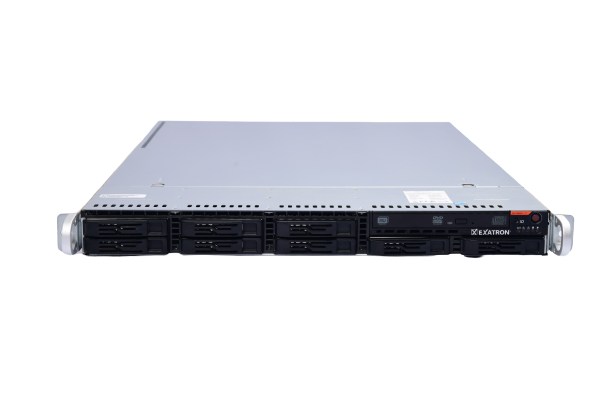

Rx220-3i 16 HPC Server Series

Key Applications

Ideal for

High-Performance Computing (HPC) Workloads, AI/ML Applications, Complex Data Analytics

Key Features

Rx220-3i 16 HPC Server

Cyber-Resilient Architecture, Embedded Management, Rest easier with Exatron Services

Product SKUs
SuperServer Rx220-3i16-12SN, Rx220-3i16-12SE, Rx220-3i16-24N, Rx220-3i16-24SE
Motherboard
Intel®C621A Platform Controller Hub
Processor
Processor	•3rd Gen Intel® Xeon® Scalable Processors (Ice Lake) •Supports CPU TDP up to 270W **Use over 165W CPU, Please contact Exatron Technical Support for more info/details about optimized CPUs and specialized system. • CPU Interconnection: QPI Speeds 11.2 GT/s •Socket Type: Socket P+ (LGA-4189)
System Memory
System Memory	• 8 x memory channels per CPU (1DPC) • 16 x DIMM slots support: DDR4 3200/2933MHz RDIMM/LRDIMM • up to 512GB RDIMM SRx4 (16Gb) • up to 1024GB RDIMM DRx4 (16Gb) • up to 4096GB RDIMM 3DS 8Rx4 (16Gb) • up to 2048GB LRDIMM QRx4 (16Gb) • up to 4096GB LRDIMM 3DS 8Rx4 (16Gb) Intel® Optane™ DC Persistent Memory (Barlow Pass) support
Input / Output
Rear I/O	LAN: • 1 x GbE RJ45 • 1 x GbE RJ45 dedicated to BMC management USB: • 2 x USB 3.0 Type A • Video Output: • 1 x external DB-15 VGA port • Serial Port: • 1 x external COM port phone jack
Front I/O	• Power Button • Reset button • UID • 2 x USB 3.2 Gen1 • Power status, Drive activity, LAN activity, System alert, System ID
System BIOS
BIOS	BIOS Type : AMI UEFI BIOS SPI (Serial Peripheral Interface) FLASH Interface • SMBIOS BIOS Features : • Serial console redirection • ACPI • BIOS Boot • PXE • BIOS Recovery Mode • WOL • SRIOV • AC loss recovery • iSCSI • BIOS recovery • TPM • IPMI 2.0 KCS interface • PCIe NTB
Management
Embedded Management	IPMI 2.0 • KVM over IP •Media redirection •Temperature, fan, voltage, PSU sensor monitor •System temperature •System ID / System fail indicator •Remote power on/off/reset •SEL message alarm through mail •SNMP support •Intel NM
PC Health Monitoring
Operating conditions	•Storage temperature: -10ºC(14ºF) ~ 60ºC(140ºF) •Operating temperature: 0ºC(32ºF) ~ 35ºC(95ºF) •Storage operating humidity: 5%~95% non-condensing

Dimensions and Weight
Dimensions (WxDxH)	•mm: 438 x 800 x 87.5 •inches: 17.2 x 33.5 x 3.5
Expansion Slots
PCIe slots	• 3 x PCIe X16 slots (HHHL) + 1 x OCP 3.0 • 2 x PCIe X8 slots (HHHL)
Drive Bays / Storage
Storage	External: •2U 12x3.5”SAS /SATA/NVMe,& Up to 24 x 2.5” hot swap (5x PCIe Gen4 Slimline connectors) • 2 x 2.5” hot swap (SATA, 15mm, rear) Internal: •2 x M.2/M-Key/22110/2280 (PCIe Gen3)
System Cooling
Cooling Options	Air Cooled
Fans	4 x 60x56mm easy swap fans ABS material plastic air-duct (clear)
Power Supply
Power Supply	1200W /1600W/2000W CRP N+1 Supports
Operating Environment
Supported Operating Systems	Microsoft Windows Server 2019/2022, Redhat Linux 9.2,8.8.8.7, ubuntu 20.04LTS,22.04LTS SLES 15SP3, SLES 12SP5, SLES 15 SP2 Oracle Linux 7.8
Others
Rack Height (Processor count)	1U (2S)
Processor interconnect	QPI @ 10.4 GT/s, 9.6 GT/s DMI 4.0 @8GBps
Hard Drives	4x Front Bay 2.5"/3.5" hot plug Tri mode Backplane SAS/SATA NVMe
RAID Controller	On Board RAID SATA RAID,0,1,5, Optional, yes
Integrated LAN IPMI	Yes, 1x Management port
Fans	40mm \| 8 fans
USB ports	2x RIO USB 3.0 2x FIO USB3.0
Integrated IO	1x RIO RJ45 1G MGMT 1x Int DH10 serial port 1x RIO VGA DB-15
Certification	CE, WEEE, ROHS,BIS, EPR
Drive Bays	•12 bay 3.5”/2.5” 8 to 24 x 2.5” hot swap (5x PCIe Gen4 Slimline connectors) •2 x 2.5” hot swap (SATA, 15mm, rear)
Embedded NIC	1 x GbE RJ45 dedicated BMC management
Network options	1x x16 OCP v3.0 (PCIe Gen4)
Regulation and compliance	BIS, WEEE, ECC, ISO9001 Complied
