Exatron

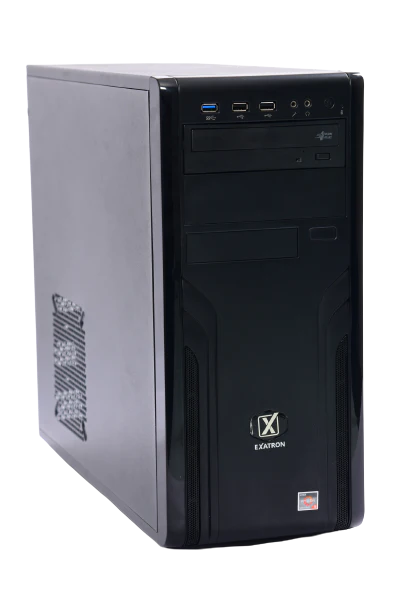

Exatron TX120-3i Tower Server

Key Applications

SKQ ID

Server System S7120

Key Features

Memory Types

DDR4 ECC RDIMM/LRDIMM 2133/2400/2666/2933 & Intel® Optane™ DC Persistent Memory Supported

Description

Integrated 4U Tower system featuring an ® Server Board supporting two 3nd Generation Intel® Xeon® Scalable processors, (4/8) 3.5 inch hot-swap drives, 16 DIMMs,800/1000/1200W redundant-capable power supply.

Product SKUs
SuperServer C621S2600-2CRH
Management
Intel® Remote Management Module Support	Yes

Chassis
Chassis Form Factor	4U,Tower
Chassis Dimensions	16.93" x 27.95" x 3.44"
Front Panel
No of Front Drives Supported	4LFF /8SFF
Front Drive Form Factor	Hot-swap 2.5" & 3.5”
Drive Bays / Storage
Max Memory Size (dependent on memory type)	2TB
System Cooling
System Monitoring	Chipset: Aspeed AST2600 Fan: Total (5) 4-pin headers Temperature: Monitors temperature for CPU, memory & system environment Voltage Monitors voltage for CPU, memory, chipset & power supply LED: Over temperature warning indicator / Fan & PSU fail LED indicator Others: Watchdog timer support
Power Supply
Power Supply	800/1000/1200 Watts
Power Supply Type	AC
# of Power Supply Included	2 for redundant
