Exatron

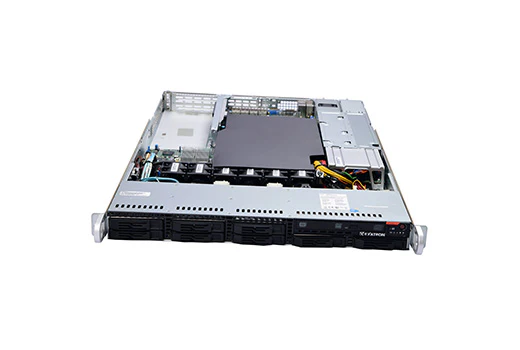

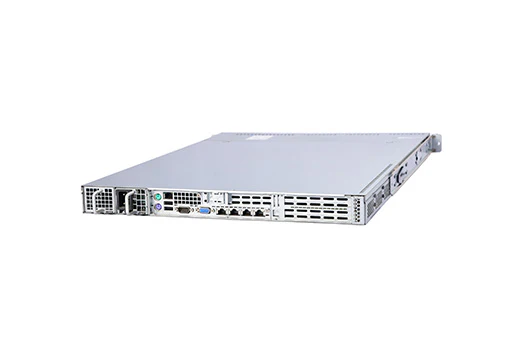

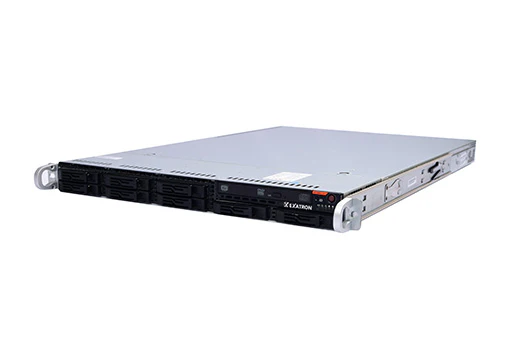

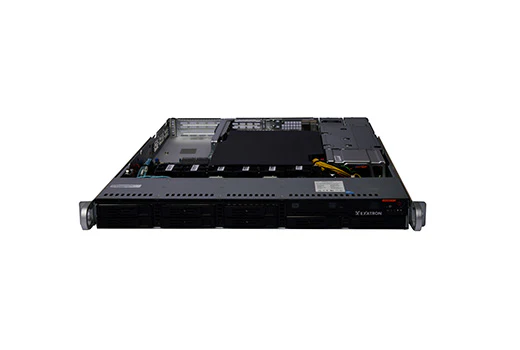

Servers Rx110-WF0 Microsoft/VMware Certified

SKQ ID

C624S2600-1CWF

Dual Scalable Intel 1st and 2nd Gen Processors up 24 Core and 165 TDP Supports (Cascade and Sky lake processors).

24DIMM Slots. Scales from 8GB to 2.4TB & 2133 to 2933Mts. 6 DIMM Controllers with 4 Channels each. DDR4 ECC RDIMM/LRDIMM Memory.

C624 Intel chipset.

Product SKUs
SuperServer C624S2600-1CWF
Processor
Processor	Dual Scalable Intel 1st and 2nd Gen (Cascade & Skylake), up to 24 Cores. 165TDP.
System Memory
RAM	24DIMM Slots. Scales from 8GB to 2.4TB & 2133 to 2933Mts. 6 DIMM Controllers with 4 Channels each. DDR4 ECC RDIMM/LRDIMM Memory.

Drive Bays / Storage
Storage	RAID 0/1/5 SATA Controllers. Upto 8 HDD/SSD slots (2.5"/3.5"). 2XM.2 slots with VROC support/Cache Drive Convertable.
Power Supply
Other Features	•1100 Watts to 1+1 N Hot swap Dual PSU, • 2x16 3.0 or 4x8 3.0 PCIe Slots with raiser Support • Intel® Virtualization Technology for Directed I/O (VT-d) • Intel® Trusted Execution Technology TPM2.0 • Dual 10Gbps Integrated LAN PORT • OCP Network Support • RAID Mezzanine Slot Support • Remote Management (Intel RMM Lite4) • IPMI 2.0 & Redfish, KVM Remote media Support, • DVD R/w Optional
