Exatron

Rx220-ST Microsoft Certified(2)

Key Applications

SKQ ID

C624S2600-ST

Key Features

Processor

Dual Scalable Intel 1st and 2nd Gen (Cascade & Skylake), up to 24 Cores. 165TDP.

RAM

16DIMM Slots. Scales from 8GB to 2.4TB & 2133 to 2933Mts. 3 DIMM Controllers with 2 Channels each & 1 DIMM Controller with 2 Channels. DDR4 ECC RDIMM/LRDIMM Memory.

Chipset

C624 Intel chipset

Product SKUs
SuperServer C624S2600-ST
Processor
Processor	Dual Scalable Intel 1st and 2nd Gen (Cascade & Skylake), up to 24 Cores. 165TDP.
System Memory
RAM	16DIMM Slots. Scales from 8GB to 2.4TB & 2133 to 2933Mts. 8 DIMM Controllers with 2 Channels each. DDR4 ECC RDIMM/LRDIMM Memory.

Drive Bays / Storage
Storage	RAID 0/1/10/5/50/6 SATA Controllers. Upto 12 HDD/SSD slots (3.5"). 2XM.2 slots with VROC support/Cache Drive Convertable.
Power Supply

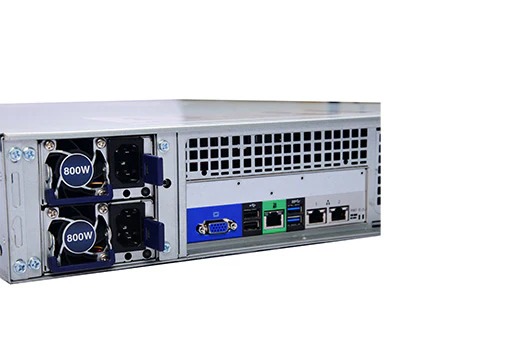

Other Features	•800 Watts to1200 Watts to 1+1 N Hot swap Dual PSU, • 2x16 3.0 or 4x8 3.0 PCIe Slots with raiser Support • Intel® Virtualization Technology for Directed I/O (VT-d) • RAID Controller with 1/2/4/8/ GB Cache • Intel® Trusted Execution Technology TPM2.0 • Dual 10Gbps Integrated LAN PORT • Remote Management (Intel RMM Lite4) • IPMI 2.0 & Redfish, KVM Remote media Support, • DVD R/w Optional.
